Product Features:

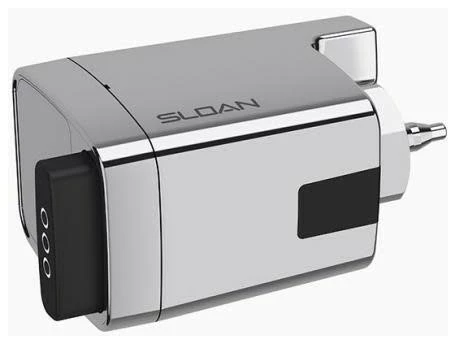

- ADA Compliant Optima Plusยฎ battery powered infrared side mount sensor for automatic “No Hands” operation
- Chrome plated infrared sensor housing
- Non-Hold-Open true mechanical override full flush button
- Initial Set-up range indicator light (first 10 minutes)
- User-friendly (3) second flush delay
- Four size C alkaline batteries included: Duracellยฎ with DURALOCK Power Preserve Technologyโข guaranteed for up to 10 years in storage
- “Low Battery” Flashing LED
- “User in View” Flashing LED
- Can be installed when handle is on left side or right side of valve
- Installation tools provided
- No external volume adjustment to ensure water conservation
Technology Benefits:
*
Smart Sense Technologyโข: Sloanยฎ DFSM flushometers are equipped with Smart Sense Technologyโข which applies extended range and logic techniques to significantly reduce water usage. The DFSM flushometer automatically delivers a reduced flush when users are present less than 60 seconds.
Specifications:
- Height: 13-1/2″
- Width: 12-1/4″ (measured from furthest point left to furthest point right on fixture)
- Gallons Per Flush: 1.1 or 1.6
- Installation Type: Deck Mount
- Manufacturer Warranty: 3 Year Limited
- Material: Metal
- Product Class: Commercial
- Water Efficient: Yes
- Approved for Commercial Use: Yes
