Outlet 💯 Linear Shower Drain, Brushed Nickel Square Design By Serene Drains, 35″ 🤩

Serene Drains Linear Shower Drains, Brushed Nickel Traditional Square Design

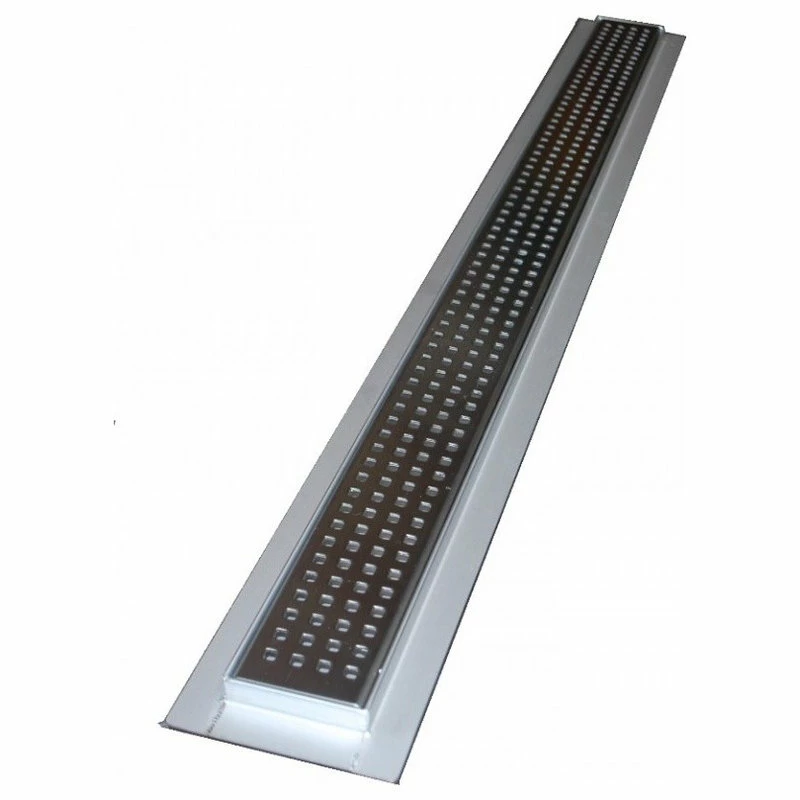

Drain Includes: 100% stainless steel channel body & grate, puller key, waterproofing membrane sheet around the drain flange (not required but included), Installation Instruction.

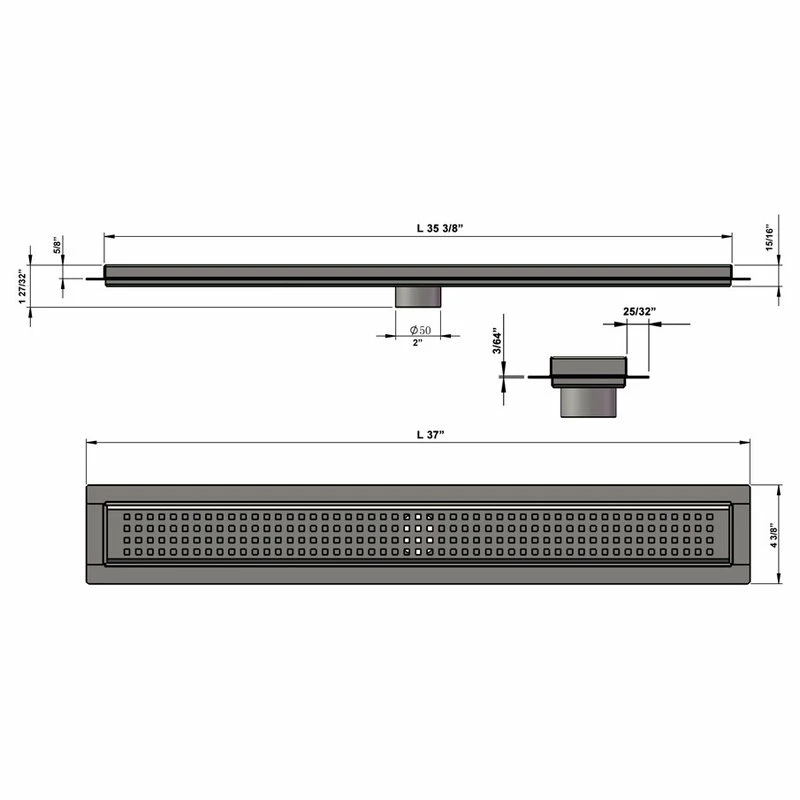

Approximate dimensions:

• Net Size 15″ 3/4″ x 2 3/4″ (visible on floor) 400mm | Overall Size 17″ 1/4″ x 4 3/8″ | Intake sq. in: 12.38
• Net Size 23″ 1/2″ x 2 3/4″ (visible on floor) 600mm | Overall Size 25.2″ x 4 3/8″ | Intake sq. in: 14.96
• Net Size 30″ x 2 3/4″ (visible on floor) 762mm | Overall Size 31.57″ x 4 3/8″ | Intake sq. in: 17.62
• Net Size 35″ 3/8″ x 2 3/4″ (visible on floor) 900mm | Overall Size 37.01″ x 4 3/8″ | Intake sq. in: 20.03.
• Net Size 39″ 3/8″ x 2 3/4″ (visible on floor) 1000mm | Overall Size 40.95″ x 4 3/8″ | Intake sq. in: 21.12
• Net Size 47 1/4″ x 2 3/4″ (visible on floor) 1200mm | Overall Size 48.82″ x 4 3/8″ | Intake sq. in: 26.68
• Net Size 59.05″ x 2 3/4″ (visible on floor) 1500mm | Overall Size 60.63″ x 4 3/8″ | Intake sq. in: 31.67

Perfect for:

• Wheelchair access (ADA complaint) & barrier-free showers (walk in floor plans).
• Applications: Shower & bath, kitchen, pools, balconies, hotel rooms, gym, spa etc.

Features:

• Stainless steel brushed nickel finish.
• Superior quality laser cut electropolish finish.
• Bodies are fully welded and leak tested prior to dispatch.
• 2 Inch diameter central vertical outlet, designed to be installed into any 2″ shower drain flange.
• Compatible with tiles up to 10mm depth (14mm lip).
• Pre-Slope channel. Channel width: 2 3/4″ (70 mm).
• Serene Drains are sized to match standard 1/2″, 1″, 2, and 4″ tile without cutting.
• Drain grade is 16 gauge 304 stainless steel (The Wedge design grade is 6 gauge 304 stainless steel).
• Flow rate: at entrance of shower – 6.3GPM (0.4 l/s); against the wall – 9.5GPM (0.6 l/s).
• Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing etc.

Visit our Houzz shop for more Luxurious Designs: Wind Design, Wave Design, Square Design, Broken Lane Design, Tile Insert Design, Tile Insert Invisible Design, Linear Wedge Design. The TILE INSERT shower drain is used to camouflage the drain with the same tile installed on the shower floor. The INVISIBLE Tile Insert Drain can be faced with the same tile installed on the shower floor to completely hide the drain under the tile. The Slim Invisible Drain is the newest trend in shower design

Optional accessories include plumbing connectors (ABS/ PVC drain base flange) and debris strainer

• 30 day return policy. Money back guarantee.
• Contact us for quantity discounts
